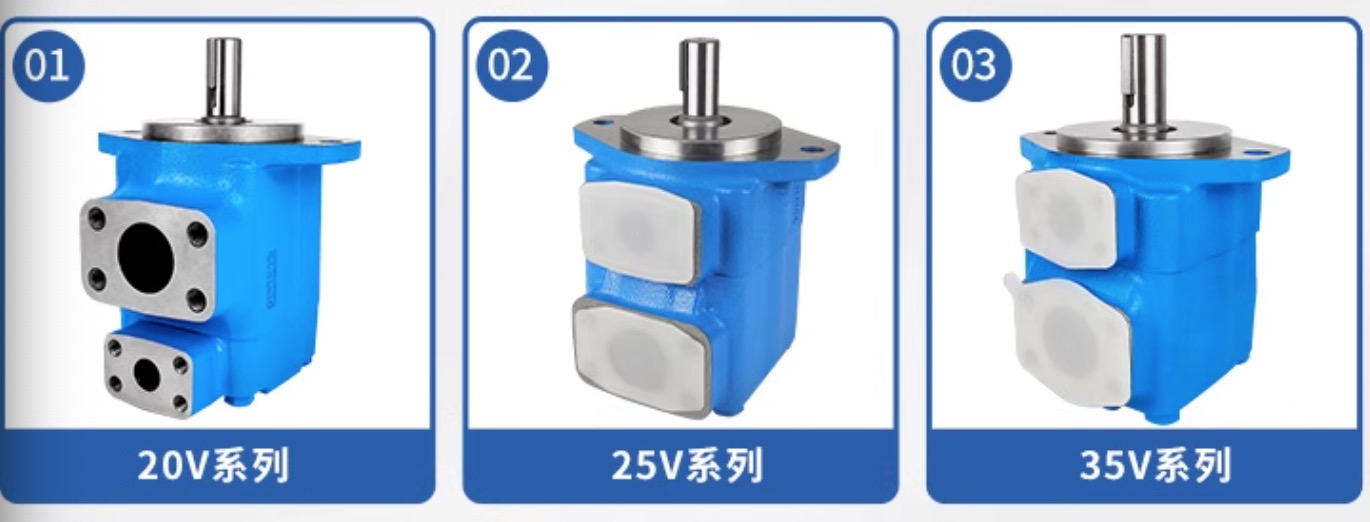

Hydraulic Vane Pump

Replaces: Vickers 20V, 25V, 35V, 45V; Tokimec / SQP; Vickers / Eaton VQ; YUKEN PV2R; Taixin PV2R; 50T
Fits: Haitian MA, Haitian Jupiter, Chen Hsong JM

High-performance hydraulic vane pump for injection molding machine hydraulic power units.

Type: Fixed Displacement Vane Pump
Max Pressure: Up to 21 MPa by model (50T series: 7 MPa)
Displacement: About 6 – 237 cm³/rev by model
Speed Range: 600 – 1800 rpm

Configuration

Quantity

Quote reply within 24 hours. Shipped worldwide from Ningbo.

Where it fits

Zone 9: Hydraulic unit

Description

Industrial fixed-displacement hydraulic vane pump for injection molding machine hydraulic systems. Available in multiple brands and configurations including Vickers, Tokimec SQP, YUKEN and Taixin models. Provides reliable hydraulic flow with low noise and long service life. Suitable for clamping and injection circuits.

Specifications

Specifications of HY-PW-06 Hydraulic Vane Pump
Type	Fixed Displacement Vane Pump
Max Pressure	Up to 21 MPa by model (50T series: 7 MPa)
Displacement	About 6 – 237 cm³/rev by model
Speed Range	600 – 1800 rpm
Fluid	Hydraulic Oil (ISO VG 32-68)
Mounting	SAE 2-bolt / 4-bolt

Configurations

Available configurations of Hydraulic Vane Pump
SKU	Brand	Series	Weight
HY-PW-06-VK20V	Vickers	20V Series	13 kg
20V11A-1A-22R 20V11A-1B-22R 20V11A-1C-22R 20V11A-1D-22R 20V12A-1A-22R 20V12A-1B-22R 20V12A-1C-22R 20V12A-1D-22R 20V14A-1A-22R 20V14A-1B-22R 20V14A-1C-22R 20V14A-1D-22R
HY-PW-06-VK25V	Vickers	25V Series	15 kg
25V14A-1A-22R 25V14A-1B-22R 25V14A-1C-22R 25V14A-1D-22R 25V17A-1A-22R 25V17A-1B-22R 25V17A-1C-22R 25V17A-1D-22R 25V19A-1A-22R 25V19A-1B-22R 25V19A-1C-22R 25V19A-1D-22R 25V21A-1A-22R 25V21A-1D-22R 2520VQ
HY-PW-06-VK35V	Vickers	35V Series	—
3520VQ 3525VQ 3520V 3525V 35V25A-1A-22R 35V25A-1B-22R 35V25A-1C-22R 35V25A-1D-22R 35V30A-1A-22R 35V30A-1B-22R 35V30A-1C-22R 35V30A-1D-22R 35V35A-1A-22R 35V35A-1B-22R 35V35A-1C-22R 35V35A-1D-22R 35V38A-1A-22R 35V38A-1B-22R 35V38A-1C-22R 35V38A-1D-22R
HY-PW-06-VK45V	Vickers	45V Series	37 kg
4520VQ 4525VQ 4535VQ 4520V 4525V 4535V 45V42A-1A-22R 45V42A-1B-22R 45V42A-1C-22R 45V42A-1D-22R 45V45A-1A-22R 45V45A-1B-22R 45V45A-1C-22R 45V45A-1D-22R 45V50A-1A-22R 45V50A-1B-22R 45V50A-1C-22R 45V50A-1D-22R 45V60A-1A-22R 45V60A-1B-22R 45V60A-1C-22R 45V60A-1D-22R 45V66A-1A-22R 45V66A-1B-22R 45V66A-1C-22R 45V66A-1D-22R 45V75A-1A-22R 45V75A-1B-22R 45V75A-1C-22R 45V75A-1D-22R
HY-PW-06-SQP	Tokimec / SQP	SQP Series	—
SQP2-10 SQP2-12 SQP2-14 SQP2-15 SQP2-17 SQP2-19 SQP2-21 SQP2-25 SQP3-21 SQP3-25 SQP3-30 SQP3-32 SQP3-35 SQP3-38 SQP3-45 SQP4-42 SQP4-45 SQP4-50 SQP4-60 SQP4-66 SQP4-75 SQP21 SQP31 SQP32 SQP41 SQP42 SQP43 SQPS3 SQPS4 SQPS21 SQPS31 SQPS32 SQPS41 SQPS42 SQPS43
HY-PW-06-VQ	Vickers / Eaton	VQ Series	—
VQ225-52-52-F-RAAA-02 VQ225-65-65-F-RAAA-02 VQ215-22-6-F-RAA-01 VQ215-22-8-F-RAA-01 VQ215-22-14-F-RAA-01 VQ215-22-17-F-RAA-01 VQ215-22-19-F-RAA-01 VQ215-23-F-RAA-01 VQ215-22-26-F-RAA-01 VQ215-22-31-F-RAA-01 VQ325-60-18-F-RAAA-02 VQ425-200-43-F-RAAA-02 VQ425-216-47-F-RAAA-02 VQ425-237-52-F-RAAA-02 VQ425-200-60-F-RAAA-02 VQ425-216-65-F-RAAA-02 VQ425-237-75-F-RAAA-02 VQ425-237-18-F-RAAA-02
HY-PW-06-YK-PV2R	YUKEN	PV2R Series	—
PV2R1-6 PV2R1-8 PV2R1-12 PV2R1-14 PV2R1-17 PV2R1-19 PV2R1-23 PV2R1-25 PV2R1-31 PV2R2-26 PV2R2-33 PV2R2-41-F-RAA-43 PV2R2-47 PV2R2-53-F-RAA-43 PV2R2-59-F-RAA-43 PV2R2-63-F-RAA-43 PV2R2-65 PV2R2-75-F-RAA-43 PV2R3-76 PV2R3-85 PV2R3-95 PV2R3-108 PV2R3-116 PV2R3-125 PV2R4-136 PV2R4-153 PV2R4-184 PV2R4-200 PV2R4-237 PV2R13-6-76-L-RAAA-43 PV2R14 PV2R23 PV2R24 PV2R33 PV2R34
HY-PW-06-TX	Taixin	PV2R Series	—
PV2R1-6-F-R PV2R1-8-F-R PV2R1-10-F-R PV2R1-12-F-R PV2R1-14-F-R PV2R1-17-F-R PV2R1-19-F-R PV2R1-21-F-R PV2R1-23-F-R PV2R1-25-F-R PV2R1-28-F-R PV2R1-31-F-R PV2R1-33-F-R PV2R2-26-F-R PV2R2-33-F-R PV2R2-41-F-R PV2R2-47-F-R PV2R2-53-F-R PV2R2-59-F-R PV2R2-65-F-R PV2R2-75-F-R PV2R3-52-F-R PV2R3-60-F-R PV2R3-66-F-R PV2R3-76-F-R PV2R3-85-F-R PV2R3-94-F-R PV2R3-116-F-R PV2R3-125-F-R PV2R3-136-F-R PV2R3-153-F-R
HY-PW-06-50T-S	50T	50T Series — Small Shaft 19.9mm	—
50T-07-FR 50T-12-FR 50T-14-FR 50T-17-FR 50T-20-FR 50T-23-FR 50T-36-FR 50T-39-FR
HY-PW-06-50T-L	50T	50T Series — Big Shaft 22.2mm	—
50T-07-FR 50T-12-FR 50T-14-FR 50T-17-FR 50T-20-FR 50T-23-FR 50T-36-FR 50T-39-FR 50T-43-FR

Compatible machines

Haitian MA Series
Haitian Jupiter Series
Chen Hsong JM Series
