Hydraulic Vane Pump
Pumps & Motors
Where it fits
Zone 9: Hydraulic unit
Other parts for this zoneHY-PW-07In stock

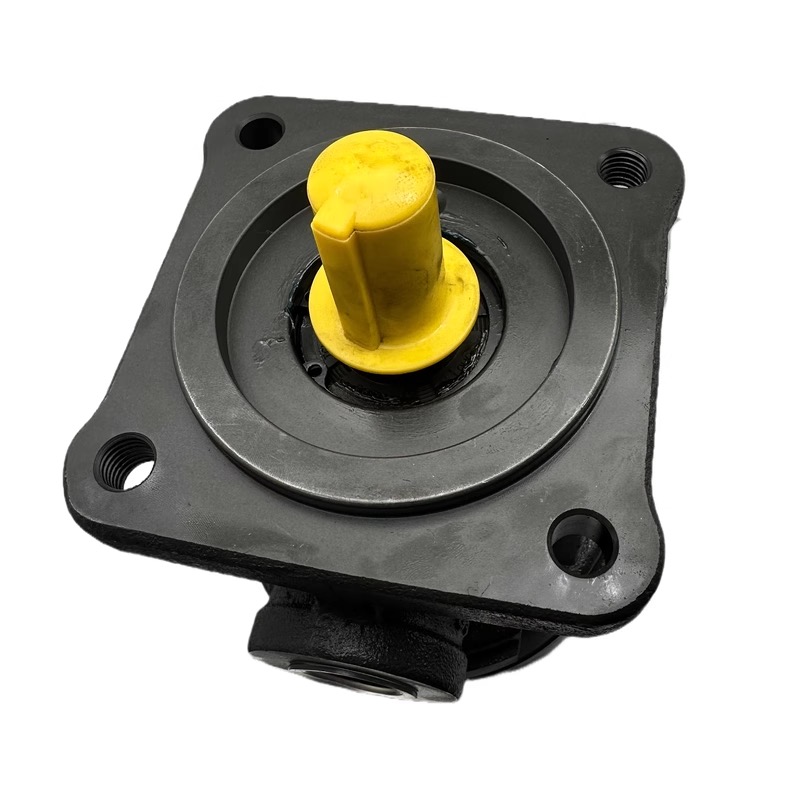

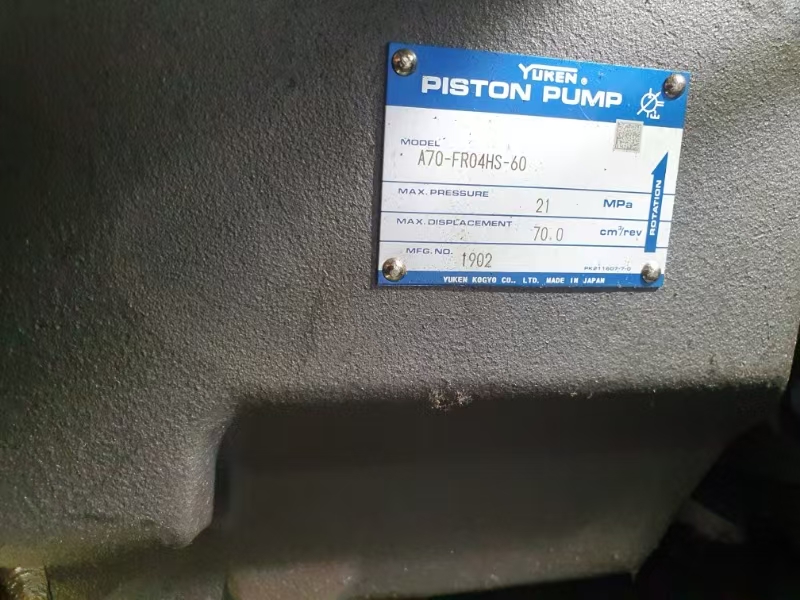

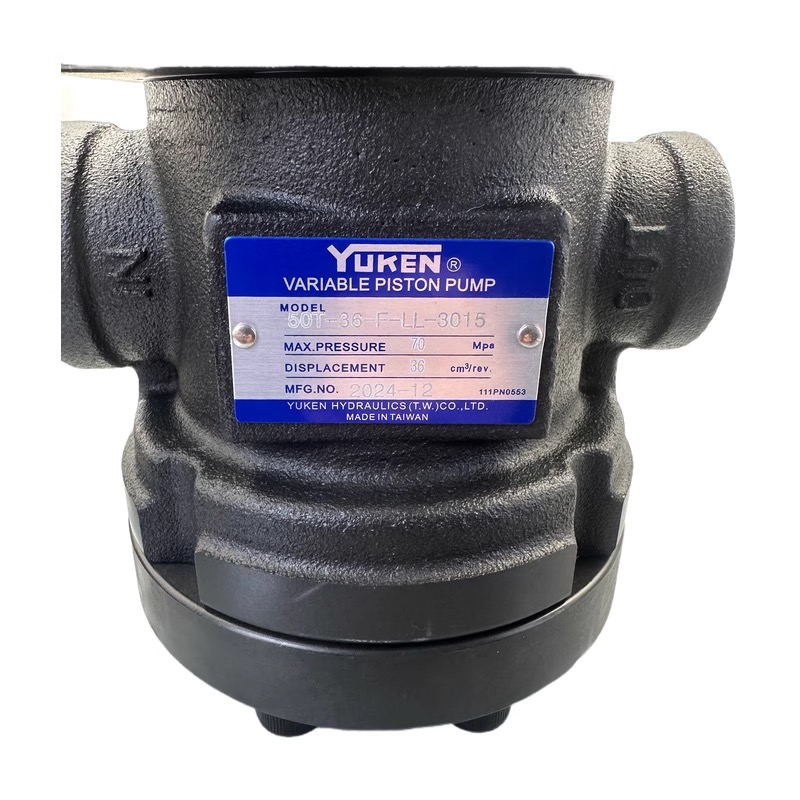

Hydraulic Piston Pump
- Replaces
- YUKEN A, ARL1
- Fits
- Haitian MA, Haitian Jupiter, Chen Hsong SM
Variable displacement hydraulic piston pump for high-pressure injection molding machine applications.
- Type
- Axial Piston Variable Displacement
- Max Pressure
- By model (ARL1 series: 7 MPa)
- Displacement
- About 6 – 145 cm³/rev by model
- Speed Range
- 500 – 2000 rpm
Quote reply within 24 hours. Shipped worldwide from Ningbo.
Request a quote for this part nowWhere it fits
Zone 9: Hydraulic unit
Other parts for this zoneDescription
Heavy-duty variable displacement axial piston pump for injection molding machine hydraulic systems. Designed for high-pressure applications including injection and clamping circuits. Features swashplate design for smooth variable displacement control and high volumetric efficiency.
Specifications
| Type | Axial Piston Variable Displacement |
|---|---|
| Max Pressure | By model (ARL1 series: 7 MPa) |
| Displacement | About 6 – 145 cm³/rev by model |
| Speed Range | 500 – 2000 rpm |
| Volumetric Efficiency | ≥ 95% |
| Mounting | Flange (F) or foot (L), per model code |
Configurations
| SKU | Brand | Series | OEM models |
|---|---|---|---|
| HY-PW-07-YK-A | YUKEN | A Series — Piston Pump | |
| HY-PW-07-ARL | YUKEN | ARL1 Series |
Compatible machines
- Haitian MA Series
- Haitian Jupiter Series
- Chen Hsong SM Series
