Hydraulic Vane Pump
Pumps & Motors
Where it fits
Zone 8: Injection unit
Other parts for this zoneHY-PW-08In stock

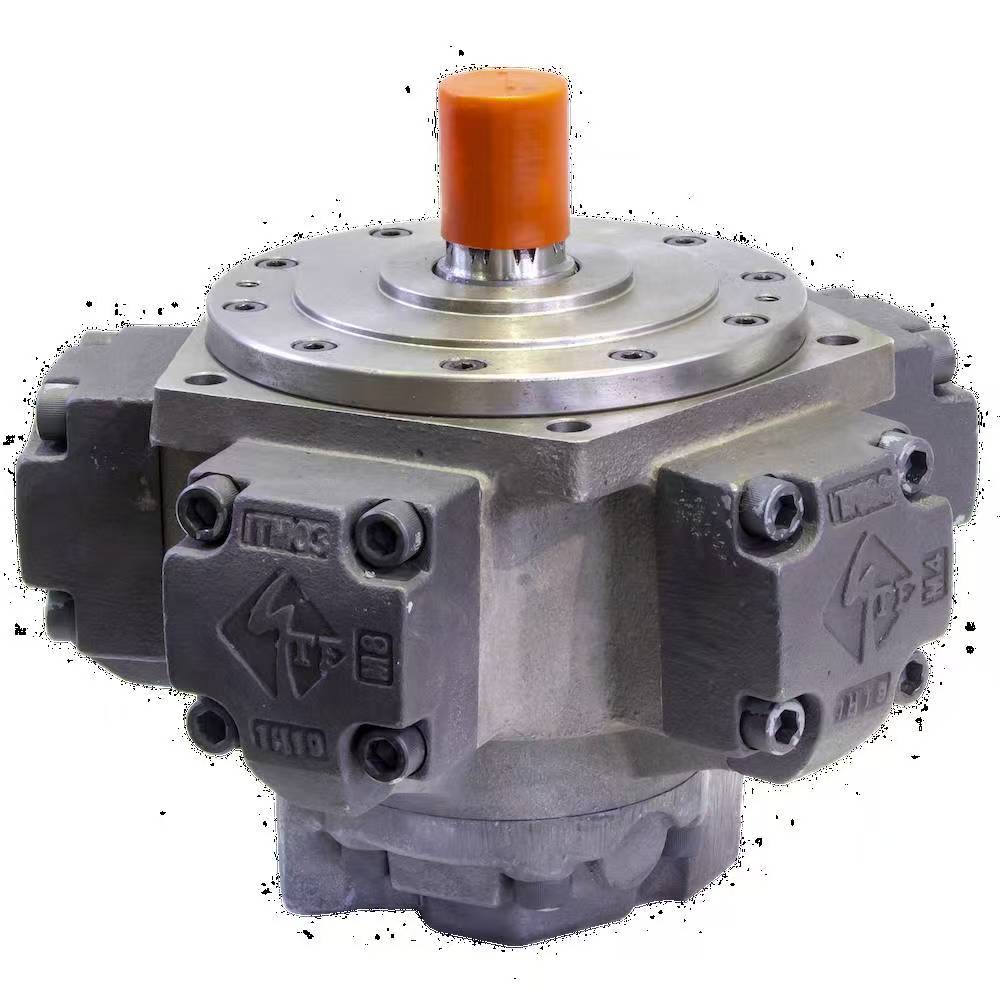

Hydraulic Plasticizing Motor (NHM Series)
- Replaces
- NHM1, NHM2, NHM3, NHM6, NHM8, NHM11, NHM16, NHM31
- Fits
- Haitian MA, Haitian MA II, Haitian MA III, Yizumi A5, Chen Hsong JM
NHM series radial piston hydraulic motor for injection molding machine screw pre-plasticizing drive.
- Type
- Radial Piston Hydraulic Motor
- Max Pressure
- 17.5 MPa
- Speed Range
- 5 – 300 rpm
- Torque
- High torque, low speed
Quote reply within 24 hours. Shipped worldwide from Ningbo.
Request a quote for this part nowWhere it fits
Zone 8: Injection unit
Other parts for this zoneDescription
High-torque NHM series radial piston hydraulic motor for plastic injection molding machine screw pre-plasticizing (plastication) systems. Available in NHM1 through NHM31 displacement series, each with flat key and shaft spline shaft options in multiple shaft diameters. Low speed, high torque design ideal for screw rotation drive.
Specifications
| Type | Radial Piston Hydraulic Motor |
|---|---|
| Max Pressure | 17.5 MPa |
| Speed Range | 5 – 300 rpm |
| Torque | High torque, low speed |
| Shaft Options | Flat Key / Shaft Spline |
| Brand | NHM |
Configurations
| SKU | Series | OEM models |
|---|---|---|
| HY-PW-08-NHM1 | NHM1 | |
| HY-PW-08-NHM2 | NHM2 | |
| HY-PW-08-NHM3 | NHM3 | |
| HY-PW-08-NHM6 | NHM6 | |
| HY-PW-08-NHM8 | NHM8 | |
| HY-PW-08-NHM11 | NHM11 | |
| HY-PW-08-NHM16 | NHM16 | |
| HY-PW-08-NHM31 | NHM31 |
Compatible machines
- Haitian MA Series
- Haitian MA II Series
- Haitian MA III Series
- Yizumi A5 Series
- Chen Hsong JM Series
