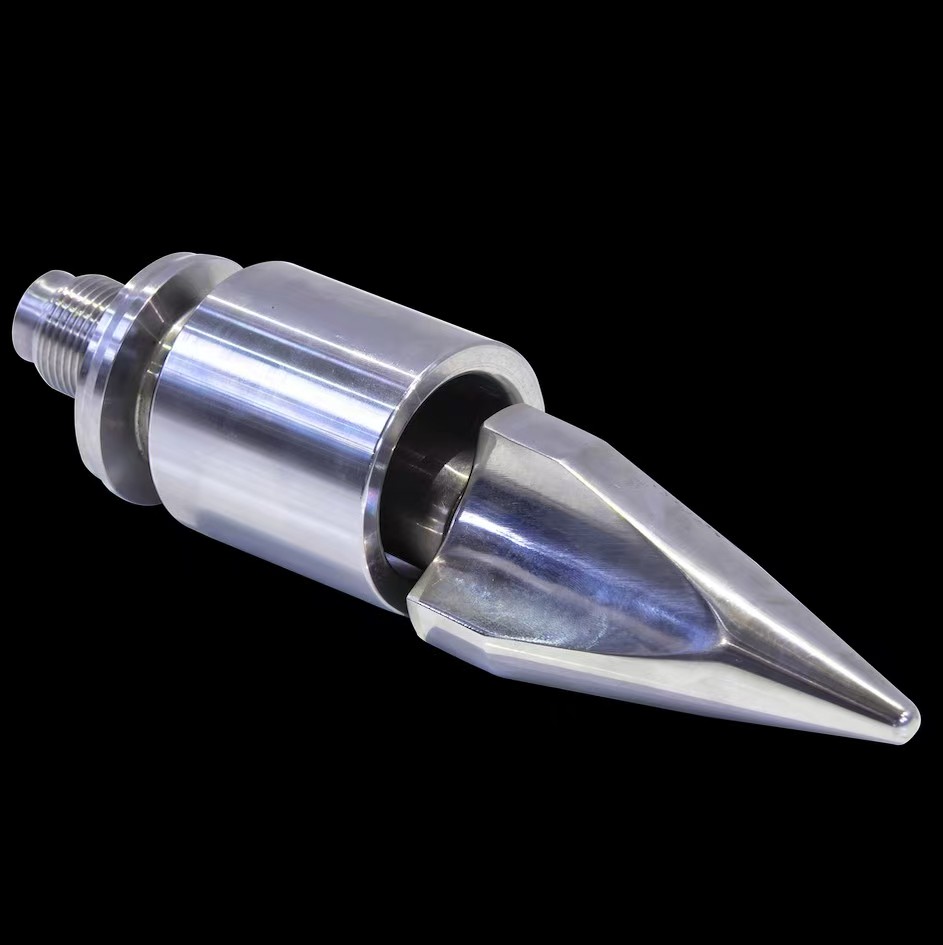

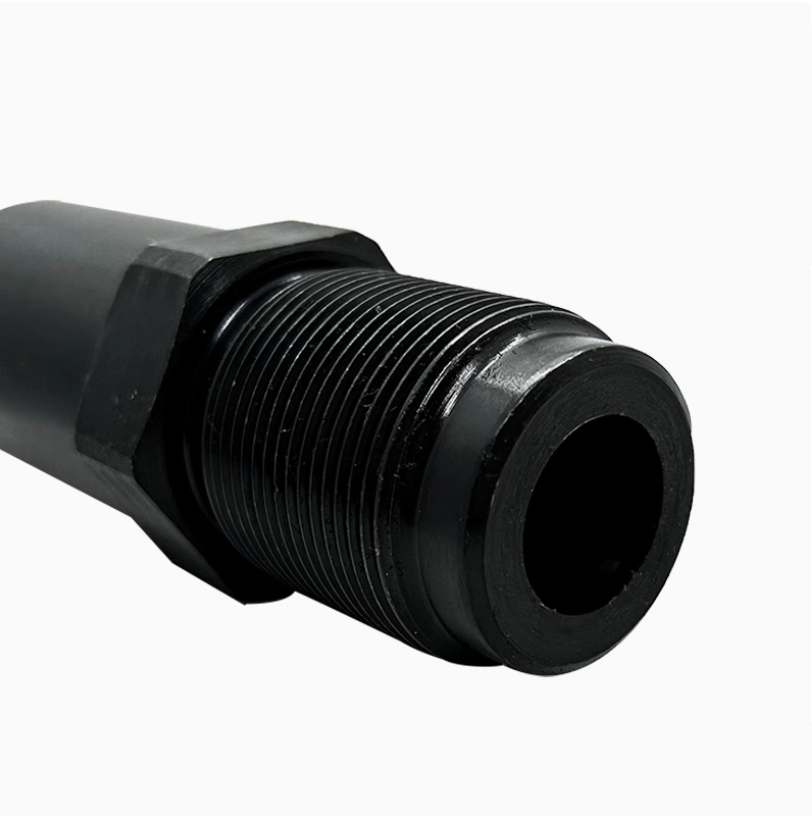

Bimetallic Barrel & Screw Assembly
- Fits
- Haitian MA, Haitian MA II, Haitian Jupiter, Yizumi A5
High-quality bimetallic barrel and screw assembly for plastic injection molding machines.
- Barrel Material
- Bimetallic Alloy Liner (38CrMoAlA base)
- Screw Material
- 38CrMoAlA / SKD61 Nitrided
- Hardness
- HRC 58-65 (liner) / HV 900-1050 (screw)
- Surface Treatment
- Nitriding / Chrome Plating
Quote reply within 24 hours. Shipped worldwide from Ningbo.
Request a quote for this part nowWhere it fits
Zone 6: Barrel, screw & nozzle
Other parts for this zoneDescription
Premium bimetallic barrel and screw assembly for injection molding machines. The barrel features a centrifugally cast bimetallic alloy liner for superior wear and corrosion resistance. Matched screw assemblies include screw tip, check ring, and end cap. Available for various machine tonnages from 90T to 1600T.
Specifications
| Barrel Material | Bimetallic Alloy Liner (38CrMoAlA base) |
|---|---|
| Screw Material | 38CrMoAlA / SKD61 Nitrided |
| Hardness | HRC 58-65 (liner) / HV 900-1050 (screw) |
| Surface Treatment | Nitriding / Chrome Plating |
| Straightness | ≤ 0.015mm/m |
| Concentricity | ≤ 0.02mm |
Configurations
| SKU | Diameter | Machine size | L/D ratio |
|---|---|---|---|
| MC-BC-01-D36 | Φ36mm | 90-120T | 20:1 – 22:1 |
| MC-BC-01-D40 | Φ40mm | 160-200T | 20:1 – 22:1 |
| MC-BC-01-D45 | Φ45mm | 250-320T | 20:1 – 22:1 |
| MC-BC-01-D50 | Φ50mm | 380-470T | 20:1 – 22:1 |
| MC-BC-01-D60 | Φ60mm | 530-800T | 20:1 – 24:1 |
| MC-BC-01-D70 | Φ70mm | 900-1600T | 20:1 – 24:1 |
Compatible machines
- Haitian MA Series
- Haitian MA II Series
- Haitian Jupiter Series
- Yizumi A5 Series
Related parts
Barrel Front Flange (Front Head)
Barrels & Cylinders
Injection Screw
Barrels & Cylinders
Injection Cylinder
Barrels & Cylinders
