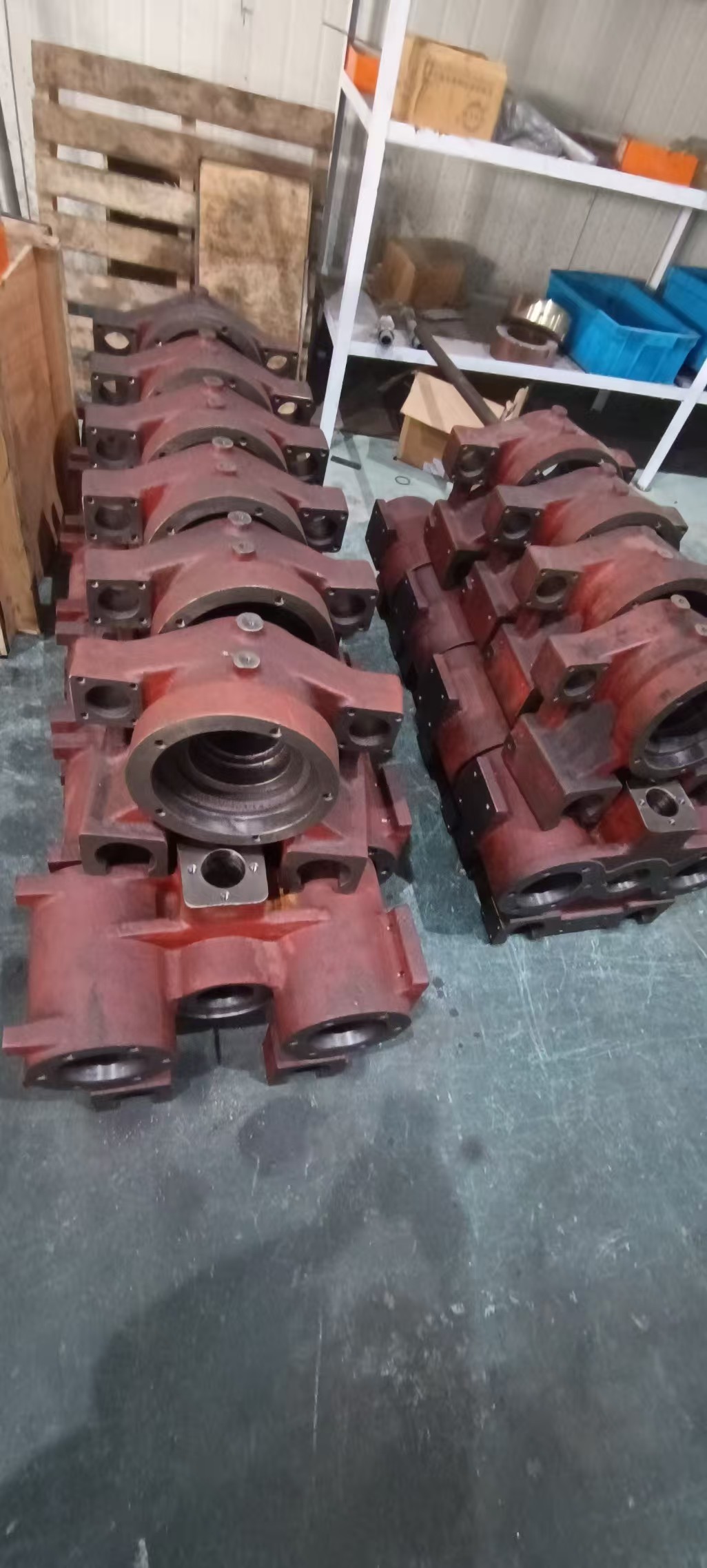

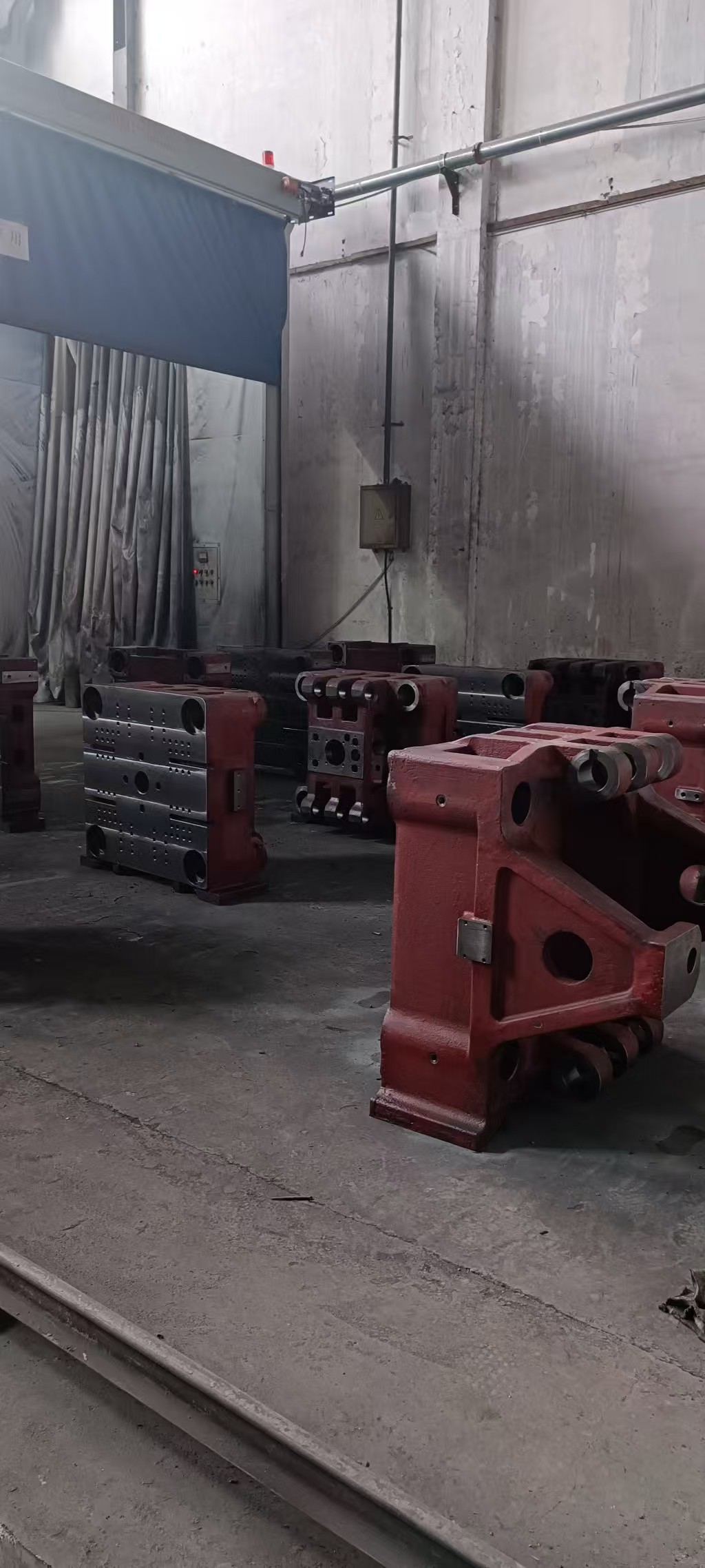

Machine Platen (Movable / Stationary)
- Fits
- Haitian MA, Haitian MA II, Haitian MA III
Stationary or movable platen for injection molding machine clamping unit.
- Material
- HT250 Grey Cast Iron / QT500 Ductile Iron
- Type
- Stationary or Movable platen
Quote reply within 24 hours. Shipped worldwide from Ningbo.
Request a quote for this part nowWhere it fits
Zone 5: Platens & mold plates
Other parts for this zoneDescription

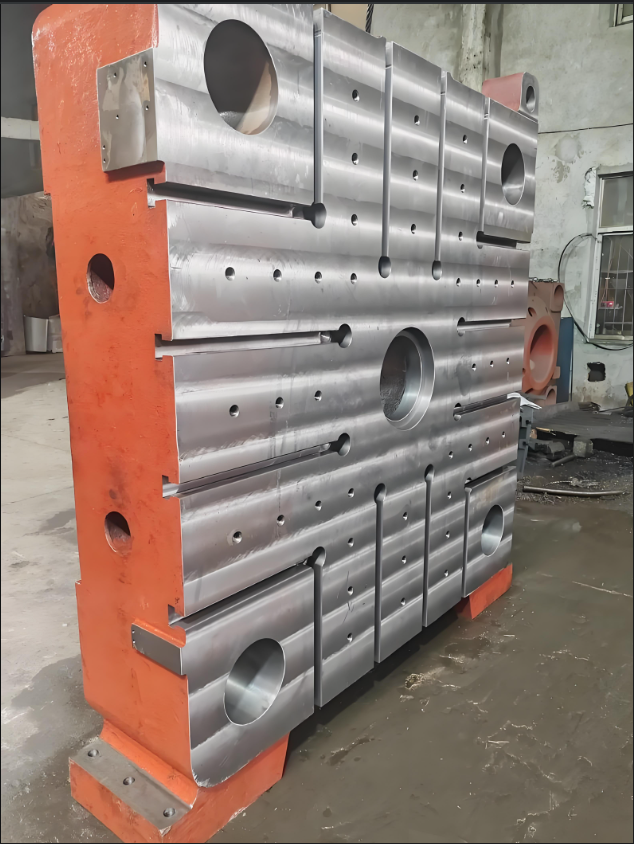

Heavy-duty cast or ductile iron machine platen for plastic injection molding machine clamping units. Available as stationary platen (fixed), movable platen (moving), or rear platen. Precision-machined with standard T-slots and tie bar holes.
Specifications
| Material | HT250 Grey Cast Iron / QT500 Ductile Iron |
|---|---|
| Type | Stationary or Movable platen |
Configurations
| SKU | Type |
|---|---|
| MC-PP-01-FX | Stationary Platen |
| MC-PP-01-MV | Movable Platen |
| MC-PP-01-RE | Rear Platen |
Compatible machines
- Haitian MA Series
- Haitian MA II Series
- Haitian MA III Series
