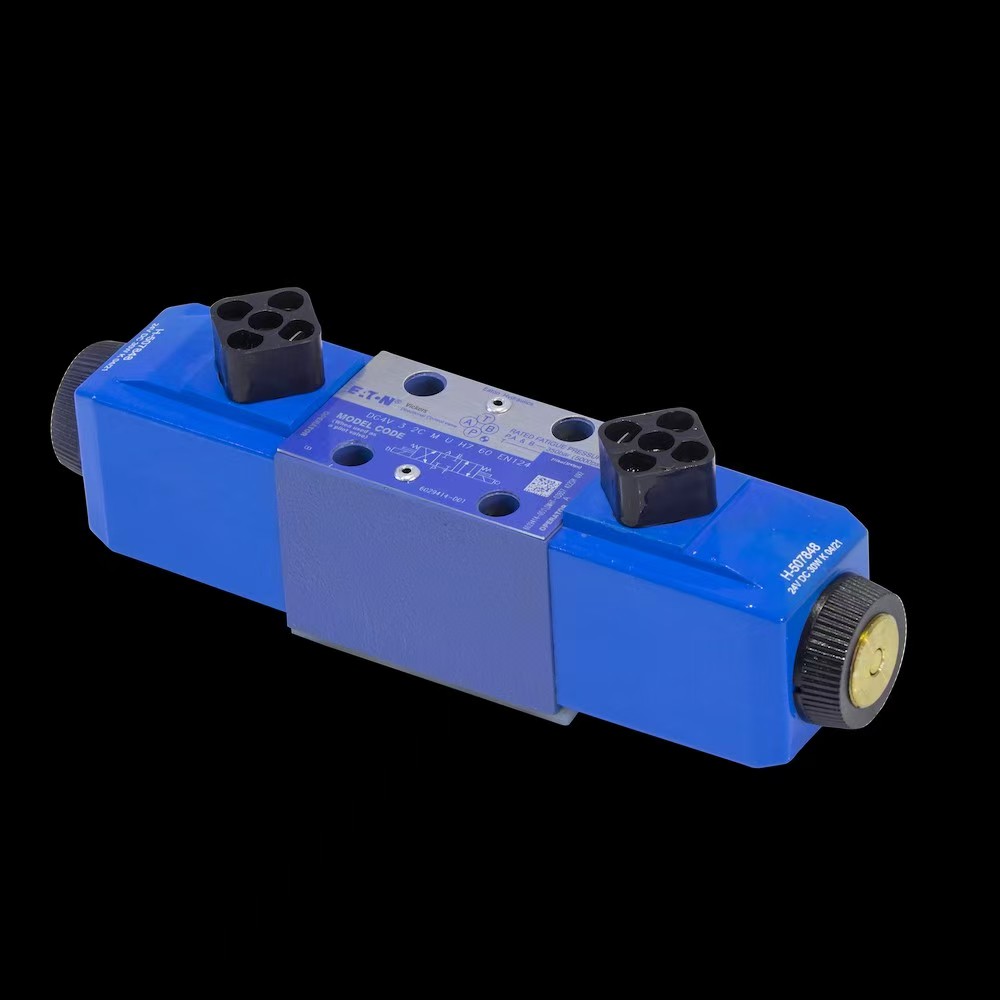

Directional Control Valve
- Fits
- Haitian MA, Haitian Jupiter, Yizumi A5, Chen Hsong JM
Solenoid-operated directional control valve for injection molding machine hydraulic circuits.
- Type
- Solenoid Operated Directional Valve
- Max Pressure
- 31.5 MPa
- Max Flow
- 60-120 L/min
- Voltage
- 24V DC / 220V AC
Quote reply within 24 hours. Shipped worldwide from Ningbo.
Request a quote for this part nowWhere it fits
Zone 9: Hydraulic unit
Other parts for this zoneDescription
High-performance solenoid-operated directional control valve for injection molding machine hydraulic systems. Provides precise directional flow control for clamping, injection, and ejection circuits. Features wet-pin solenoid design for reliable operation and long service life.
Specifications
| Type | Solenoid Operated Directional Valve |
|---|---|
| Max Pressure | 31.5 MPa |
| Max Flow | 60-120 L/min |
| Voltage | 24V DC / 220V AC |
| Mounting | Cetop 3 / Cetop 5 / Cetop 7 |
| Spool Type | Various (2-position, 3-position) |
Configurations
| SKU | Size | Max flow |
|---|---|---|
| HY-CV-02-D03 | Cetop 3 (D03) | 60 L/min |
| HY-CV-02-D05 | Cetop 5 (D05) | 80 L/min |
| HY-CV-02-D07 | Cetop 7 (D07) | 120 L/min |
Compatible machines
- Haitian MA Series
- Haitian Jupiter Series
- Yizumi A5 Series
- Chen Hsong JM Series
